    automatic 16 stations conveyor cosmetic bottles silk screen printing machine

    Ask Lasest Price
    Brand Name : Grandfon
    Model Number : YZ-250-C
    Certification : CCC
    Price : USD8850 / set
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 5 sets per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    automatic 16 stations conveyor cosmetic bottles silk screen printing machine

    automatic 16 stations conveyor cosmetic bottles silk screen printing machine




    this screen printing machine is our new product: Flat Conveyor Belt Screen Printing Machine with 16 Stations. It is designed for enhancing the efficiency of printing capacity on those small round diameter and flat objects such as bottle caps' sidewall and cap's top with single color printing, it is also fitting for those glass cups, tubes, small diameter bottles, covers, stainless steel cups printing etc.



    Advantages:
    1. fully automatic control by PLC + touch screen

    2. Four figures automatic counter program in

    3. Automatic ink scraping, oil return and lifting table

    4.16 Products installed to improve production printing speed

    5. with super long slide stroke to print large size work piece.

    6. Pneumatic part of the installation of the German FESTO tubes and Air valve, Omron Sensor, SMC Cylinder.



    Specification:


    Model No.:YZ-250-C
    Max printing size:80 x 120mm
    Air consumption:75liter / min
    Worktable size:90 x 125mm
    Max printing speed:2400pcs / hour
    Max screen size:400x350mm
    Stroke of the squeegee:250mm
    Quantity of the work stations:16 pcs
    Packing size:1230 x 870 x 1410mm
    UV curing power:2000W

    Screen printing machine actually photo:


    automatic 16 stations conveyor cosmetic bottles silk screen printing machine


    Screen printing machine fixture on conveyor:


    automatic 16 stations conveyor cosmetic bottles silk screen printing machine


    automatic 16 stations conveyor cosmetic bottles silk screen printing machine

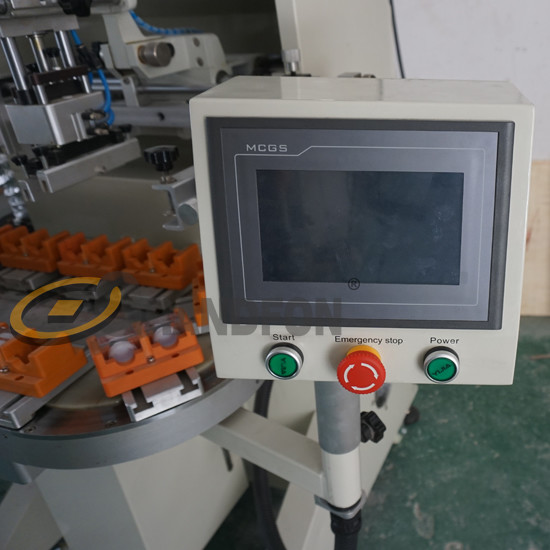

    Screen printing machine PLC + touch screen control:


    automatic 16 stations conveyor cosmetic bottles silk screen printing machine


    Screen printing machine UV curing system:


    automatic 16 stations conveyor cosmetic bottles silk screen printing machine


    How to get high quality screen printing machine ?


    from Grandfon screen printing machine, we offer your the best printing solution, and to choose a good screen printing machine, it need to focus on below details:


    1) air cylinder

    2) rail structure

    3) solenoid valve

    4) manufacture experience

    5) CNC machined


    1) First:

    For the pneumatic screen printing machine, the machine is mainly driven by air cylinder, so it is the most important item. the first class cylinder: FESTO from Germany; SMC from Japan, and the second class brand: Airtac from Taiwan, Hinge from China. Normally, use the FESTO or SMC will be the best option. Also need to make sure the cylinder is not replica ones.


    2) Second:

    to run the screen printing machine precisely, rail bar structure will be more steady and smooth, no shaking during the machine running. In market, there is also a type of round bar structure, the screen printing machine round bar stroke might have little gap between the joint structure running and round bar structure. Of course, rail bar struture is better , but also price will be higher.


    3) Third:

    For the solenoid valve, the best one also from SMC, and FESTO, too. and the second class will be SNS (China) or Airtac (Taiwan) . As long as it is brand one and not the replica one, the screen printing machine solenoid valve will be last very long time.


    4) Fourth:

    To make a good screen printing machine, the manufacturing experience is extremely important. For the expeience, it will limits small little issues, like, set the program, and buffering distance, and the machine structure need to be suitable for the pneumatic system.


    5) Fifth:

    To make the screen printing machine with accuracy printing, first the machine components need to be accurracy, A CNC machined process the components will be highly precision.


    With above 5 points checked, it will pretty sure a high quality machine.
