speedball screen printing
Specifications:
max printing size: φ180 x200mm
1.Power supply:220V /50Mhz
2.Air consumption: 500 Litre/Min
3.Max product printing diameter:180mm
4.Max product arc length:570mm
5.Max printing speed:1200Pcs/Hr
6.Machine size: 1200x700x1250mm(LxWxH)
7.Gross/Net weight:230kg/200kg
8.Packing Size:130*80*140CM
Features:
1) strict design for or diy screen printing press has the substrate
holder can adjusted to meet the application, and micro-adjustment
in vertical , transversal or tilting direction is available
2) precision multi-colors printing through synchronizes
transmission of gear and rack with the proper use of work piece
jig(fixture) for diy screen printing press
3) printing stroke can be adjusted laterally to suit various screen
plate sizes on diy screen printing press
4) equipped with shock absorber, providing precise and stable
operations for multi-color printing
5) engineering design delivers convenience loading and unloading of
work piece for safe and efficient operation
6) advance famous pneumatic & electric components: SMC, FESTO,
ORIGA ensure long lasting for diy screen printing press operation
7) options for curve printing: height adjustable work table;
standard flat work table; chromatic automatic positioning; flat
work table with vacuum suction
Machine Fittings:
1. One frame,
2. One tool box,
3. 1 inch squeegee.
4. One jar.
Application Scope:

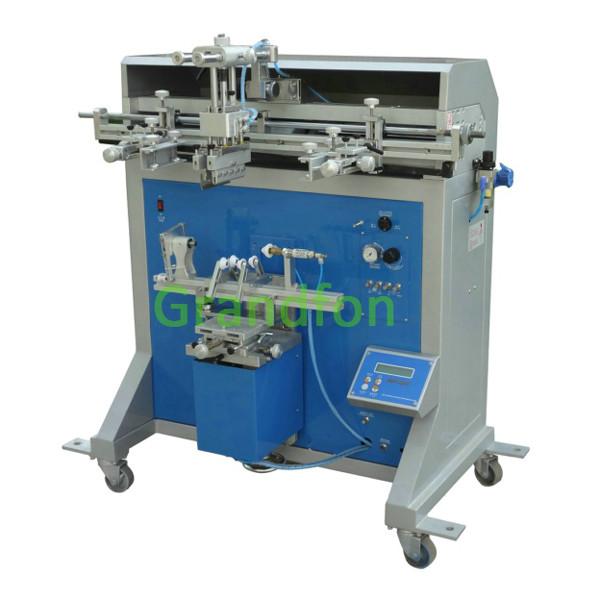

Model 650E Screen Printing Machine, which is fit for printing on
the more bigger size than model 400 machine.
Suitable for precise printing substrates in Cylindrical, Conical
and Oval forms which with smooth curve surface and made of various
materials such as metal, plastic, ceramic, glass, wood etc..
Printing objects with larger diameter such as cosmetic bottles,
scour bottles, drink bottles, pots, oil-filter shell, barrels,
buckets, plastic container, water buckets, glass bottle, stainless
steel cup and etc.
